TetraAnt 15.5 GHz Wideband
Two microstrip antennas in a single case, 15.5 GHz center frequency, wideband
- Frequency range 14,5 - 16.5 GHz
- Two separate patch wideband antennas in a single case
- Mutual coupling between antennas better than -38 dB; -45dB @ 15.5 GHz
- Peak gain: 7 dBi
- HPBW: 81 x 60 deg @ 15.5 GHz
- Polarization: linear
- Polarization plane the same for both antennas
- Connector SMA(f) x 2, at the back
- Dimensions: 135 x 62 x 11 [mm] (without SMA connectors)
- Mass: 45 g
Important Feature:
- Small, light mass and durable
- For professional application

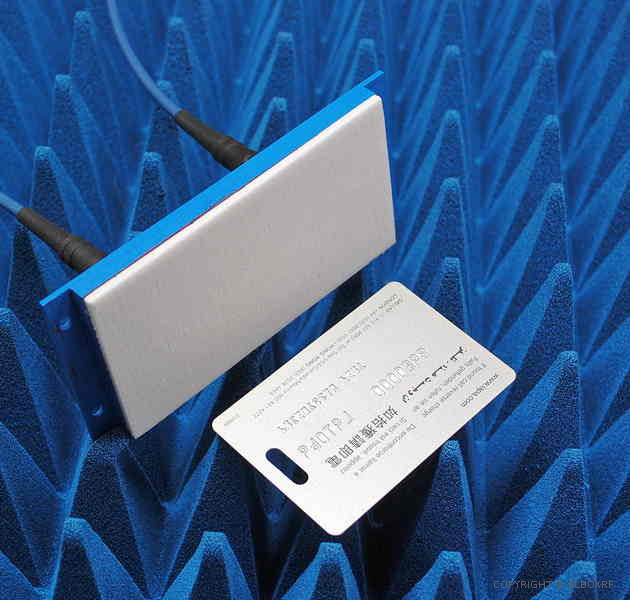

The TetraAnt 15.5 GHz Wideband antenna was originally designed as the unmanned aerial vehicles (UAVs) noise radar antenna. The important feature is a small size compared to the credit card, a durable construction, low mass and a isolation about 40 dB.
Despite the mutual coupling is about -38 dB, the antenna shows a good broadband performance. It operates in the 14.5–16.5 GHz range, with a center frequency of 15.5 GHz.
- Project - 2023. Designer: company owner-Przemyslaw Fert
TetraAnt 15.5 GHz Wideband - Parameters
Electrical Parameters
- Frequency Range: 14,5 - 16.5 GHz
- Polarization: linear, the same polarization plane for both antennas
- Two antennas in the one case
- Impedance: 50 Ohm
- VSWR: <=2.0
- Gain: 7 dBi
- Mutual Coupling <= -38 dB
- Back Radiation: <= -18 dB, see radiation patterns
- X- (or cross-) polarization components: see radiation patterns
- E-plane and H-plane HPBW: see radiation patterns
- Maximum Power: 1 W
- Protection Against Static Electricity: NO
Mechanical Parameters
- Technology: Microstrip
- Connector: SMA Female at the back
- Dimensions: 135x62x18 mm, with the connector; 135 x 62 x 11 mm (without SMA connectors)
- Dielectric Radome: White Low-Loss Dielectric Material
- Construction: Completely weatherproof
- Operating Temperature Range: -30 to +50 C
- Mounting Kit: no
- Antenna's mass: 45 g

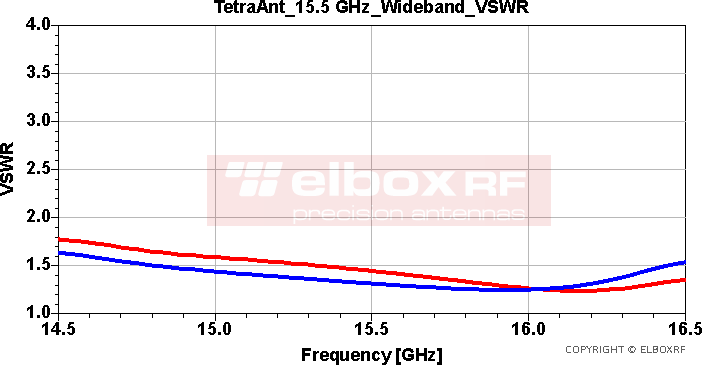

TetraAnt 15.5 GHz Wideband - VSWR
- Y axle starts at VSWR = 1.0
- Y division: 0.5
- X division: 100 MHz. The X full scale is 14.5 - 16.5 [GHz]
- Measurement-based data

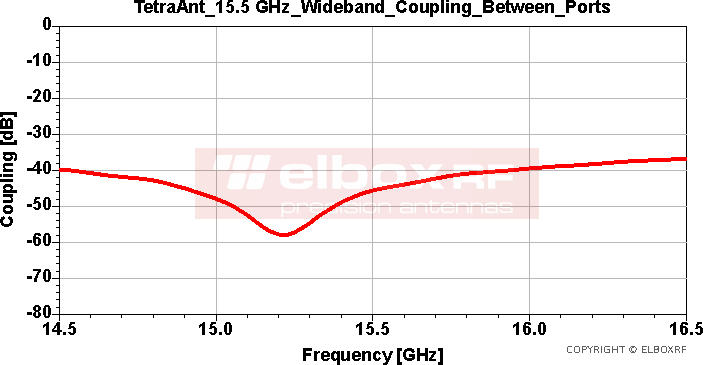

TetraAnt 15.5 GHz Wideband - Coupling
- The coupling between ports of the antenna TetraAnt 15.5 GHz High Isolation version.
- For the frequency range 14.5 - 16.5 [GHz] the isolation is no less than 38 dB
- Measurement-based data
TetraAnt 15.5 GHz Wideband - Gain
- The antenna's gain was measured in the Far-Field range in a low scatter environment, with two-antenna method.
- This is realized gain measured on the antenna's connector. All losses are taken into account.
- Realized gain is the actual power gain of an antenna that includes both internal material losses and reflection losses caused by impedance mismatch at the input port.

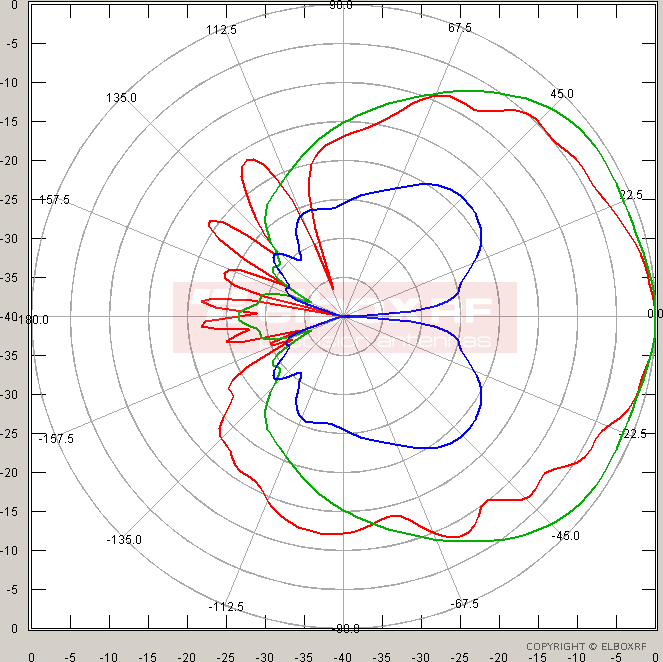

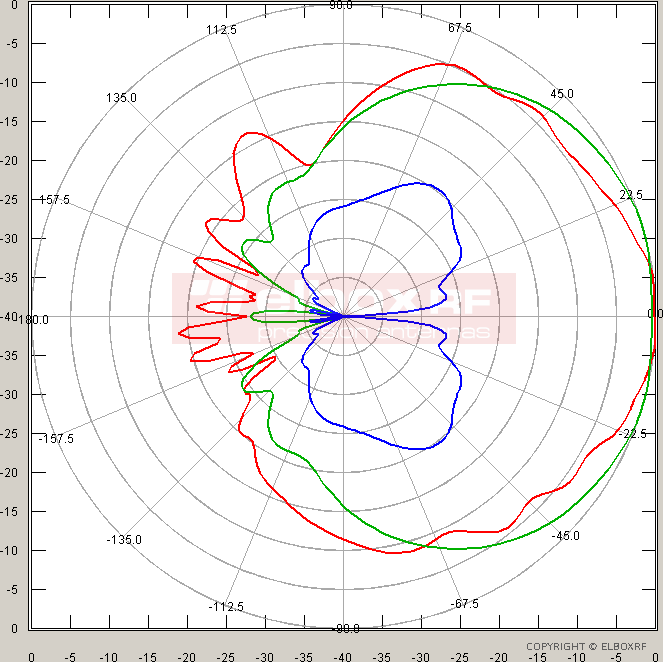

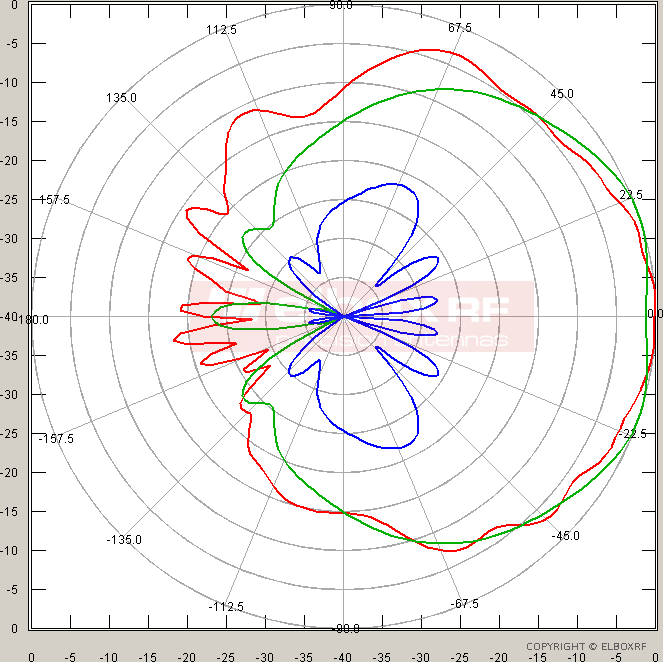

TetraAnt 15.5 Wideband - Radiation Patterns in the Polar Form
Radiation patterns are presented for the following frequency points: 14.5 - 15.5 - 16.5 GHz
If some component is invisible, it means that has lower value than -40 dB. So it is out of the scale. Patterns are referenced to 0 dB, the full scale is 40 dB.
- H polarization plane, co-polar: GREEN
- H polarization plane, cross-polar: BLACK (out of scale, below -40dB)
- E polarization plane, co-polar: RED
- E polarization plane, cross-polar: BLUE
E - electric, H - magnetic
TetraAnt 15.5 GHz High Isolation vs Wideband
For better understanding differences between the two antennas - TetraAnt 15.5 GHz High Isolation and TetraAnt 15.5 GHz Wideband, the presented below diagrams shows the mutual coupling and the gain of both antennas
- The Wideband antenna is shown in blue
- The High Isolation antenna is shown in red
TetraAnt 15.5 GHz Wideband - additional information
- Product is covered by a 2-year warranty
- Supported Product - ask the designer: fert(at)elboxrf(dot)com
- Project - 2023. Designer: company owner-Przemyslaw Fert
